Precise detection of near-surface objects

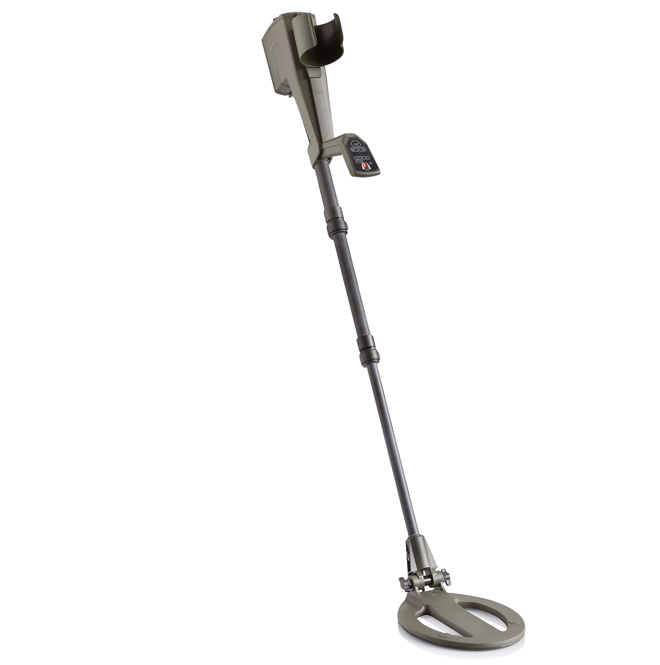

The MINEX 4.610 is designed to detect very small near-surface metal objects, so-called minimum metal mines or plastic mines. It offers maximum sensitivity and best possible pinpointing of targets while still providing robustness and reliability in any conditions.
A ground learning function for operation on uncooperative soil and a military mode that turns off the LED indicators for safe night operations are only two of the vital features available. The MINEX 4.610 comes in a rugged soft case and can be equipped with accessories according to the customer’s needs. Commonly, individual packages are defined and delivered.
Vos avantages à première vue
- Highest sensitivity: Digital dual frequency continuous wave technology for constantly high sensitivity to all metals
- Two integrated search heads (Double D): Two different signals for precise pinpointing as well as for close detection along large metal structures like railway tracks, fences and cars
- Different senses for precise working: Audible and visual signals in combination with a vibration alarm on the handle help and simplify detection
- Easy to operate: Five sensitivity ranges. All control and display elements are integrated into the handle. Visual display with 14 LEDs that can be switched off in military mode
- No disturbance and influence: No disturbance by high power lines. No influence on the detection depth by wet soil or salty water
Adapts to all circumstances: Fast individual ground learning for uncooperative soil conditions. - Safe to use: Malfunction alarm and low battery signal
- Easy to transport: Robust soft case with back carrying function
- Optional equipment: Headphone, carrying strap, rechargeable batteries, hard case, USB data cable
Données techniques
| Dimensions - Detector: | Length: 657 mm (folded up) Max. overall length: 1,677 mm Width: 97 mm Height: 253 mm |
| Dimensions - Search head: | Oval, 210 x 285 mm |
| Dimensions - Soft case: | 720 x 340 x 150 mm (H x W x D) |
| Weight: | 2.2 kg without batteries 2.6 kg complete with batteries 2.5 kg soft case |
| Waterproof - Electronics and search head: | IP 68, 2 m, 30 minutes |
| Storage temperature (without batteries): | - 57 °C to +71 °C - 135 °F to +160 °F |
| Permissible ambient temperature range | - 37 °C to +71 °C - 99 °F to +160 °F |
| Power supply: | 3 x 1.5 V alkaline battery 3 x 1.2 V NiMH rechargeable batteries |
| Battery size: | IEC LR/HR 20 (according to ANSI STD, size “D”) |
| Battery lifetime alkaline battery (1.5 V, VARTA LONGLIFE Power) | > 40 h at an ambient temp. of +20 °C (+68 °F) |
| Battery lifetime NiMH rechargeable battery (1.2 V, ANSMANN-10000 mAh) | > 30 h at an ambient temp. of +20 °C (+68 °F) |
| Mean time between failures (MTBF) | MIL-HDBK-217F N2 and ANSI/VITA 51.1-2013 (R2018) NPRD-2011 for non-electronic components |
| EMV/CE certifications | ETSI EN 303 454 V1.1.1:2018-01 DIN EN 50364:2019-05 ETSI EN 301 489-1 V2.2.3 DIN EN 55032:2016-02 DIN EN 61000-4-2:2009-12 DIN EN 61000-4-3:2011-04 DIN EN 62368-1:2021-05 |
| MIL-Standard certification | MIL-STD 810H Method 501.7, Procedure I - High Temperatures , Storage MIL-STD 810H Method 501.7, Procedure II - High Temperatures, Operation MIL-STD 810H Method 502.7, Procedure I - Low Temperatures, Storage MIL-STD 810H Method 502.7, Procedure II - Low Temperatures, Operation MIL-STD 810H Method 503.7, Procedure I-C - Thermal Shock MIL-STD-810H Method 506.6, Procedure I - Rain MIL-STD-810H Method 512.6, Procedure I - Submersion MIL-STD-810H Method 514.8, - Oscillation Broadband Noise MIL-STD-810H Method 516.8, - Drop Test MIL-STD-810G Method 505.5, Procedure II - Solar Radiation (continuous test solar radiation) |
| IMAS certification | CWA 14747-1:2003-06-01 |
| Additional certifications | IEC 60068-2-11:2020 IEC 60068-2-78:2012 IEC 60529 - Protection type test IP68 DIN EN 60068-2-27:2010-02 DIN EN 60068-2-1:2008-01/ -2-2:2008-05 |
